Managing AWS Credentials in EKS Pods with EKS Pod Identities

Managing AWS Credentials in EKS Pods with EKS Pod Identities

January 10, 2024
4 min read

In the latest AWS re:Invent, the EKS team introduced a new feature called Pod Identity. This feature makes it easier to manage IAM credentials in Kubernetes applications.

In the past, applications in a pod could use AWS SDK or aws cli to make API requests to AWS services, leveraging AWS Identity and Access Management (IAM) permissions. With EKS Pod Identities, there’s now a simpler way to manage credentials for your EKS applications, similar to how Amazon EC2 instance profiles access credentials to interact with other services. Instead of distributing AWS credentials to the containers, you can associate an IAM role with a Kubernetes service account and configure your pods to use this service account.

In this blog, I will guide you through the process of getting started with EKS Pod Identity. We will configure a simple API running in my Amazon EKS cluster to access Amazon S3 and create files there.

Step 0: Before you start

  1. AWS account.
  2. EKSctl used for communicating with the cluster API server.
  3. AWS-IAM-Authenticator – with necessary permissions to call the EKS API.
  4. EKS Cluster (v1.27) - If you don’t know how to set up an EKS cluster, click here.


Be careful

As of writing this article EKS is not included in AWS Free Tier For every cluster you create on EKS, you pay $0.10/hour.

Step 1: Install EKS pod Identity Agent addon and create an IAM role

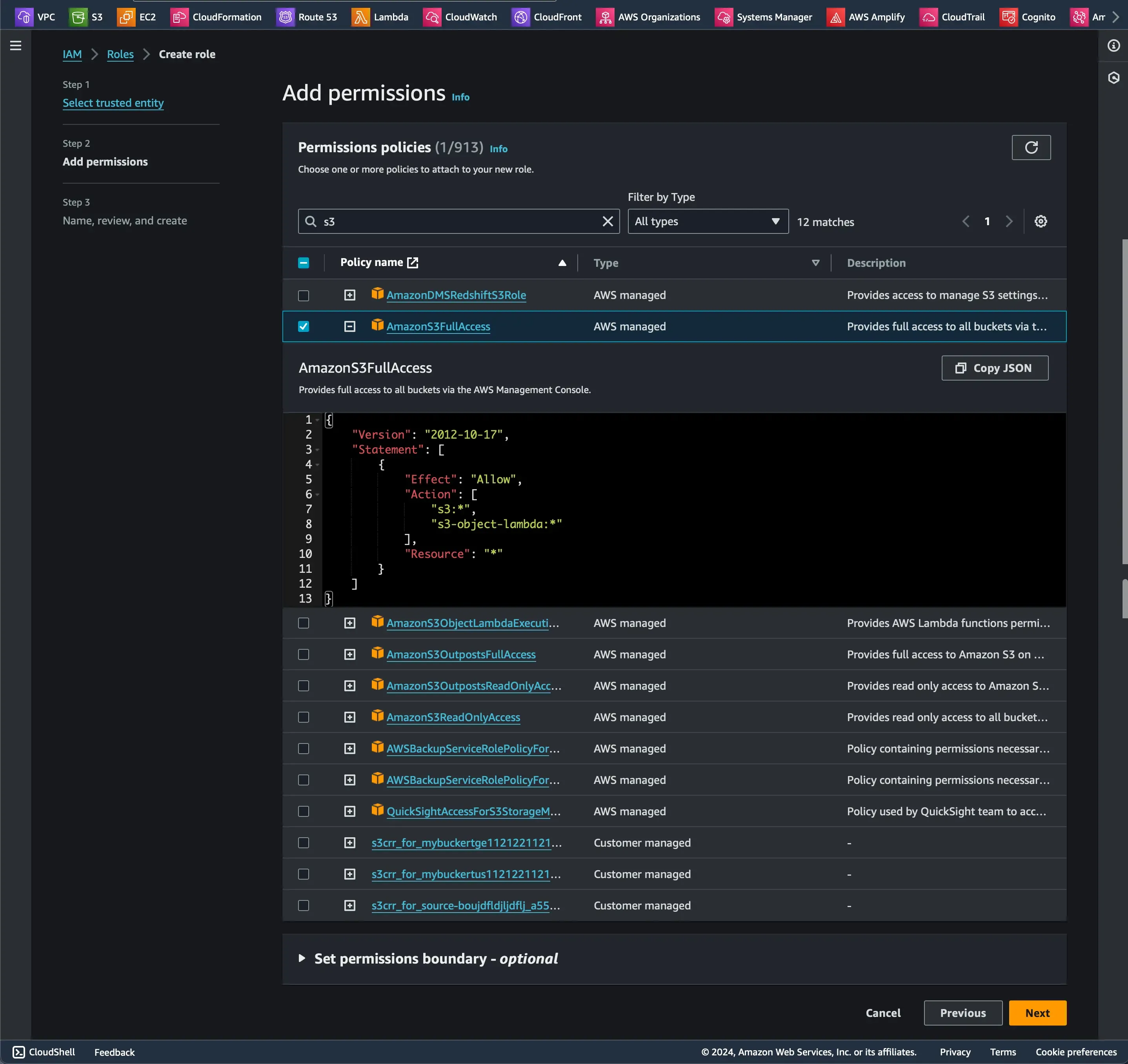

Our first step is to set up a new IAM role with required permissions to access my S3 bucket.

IAM.Json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Service": "pods.eks.amazonaws.com"
            },
            "Action": [
                "sts:AssumeRole",
                "sts:TagSession"
            ]
        }
    ]
}

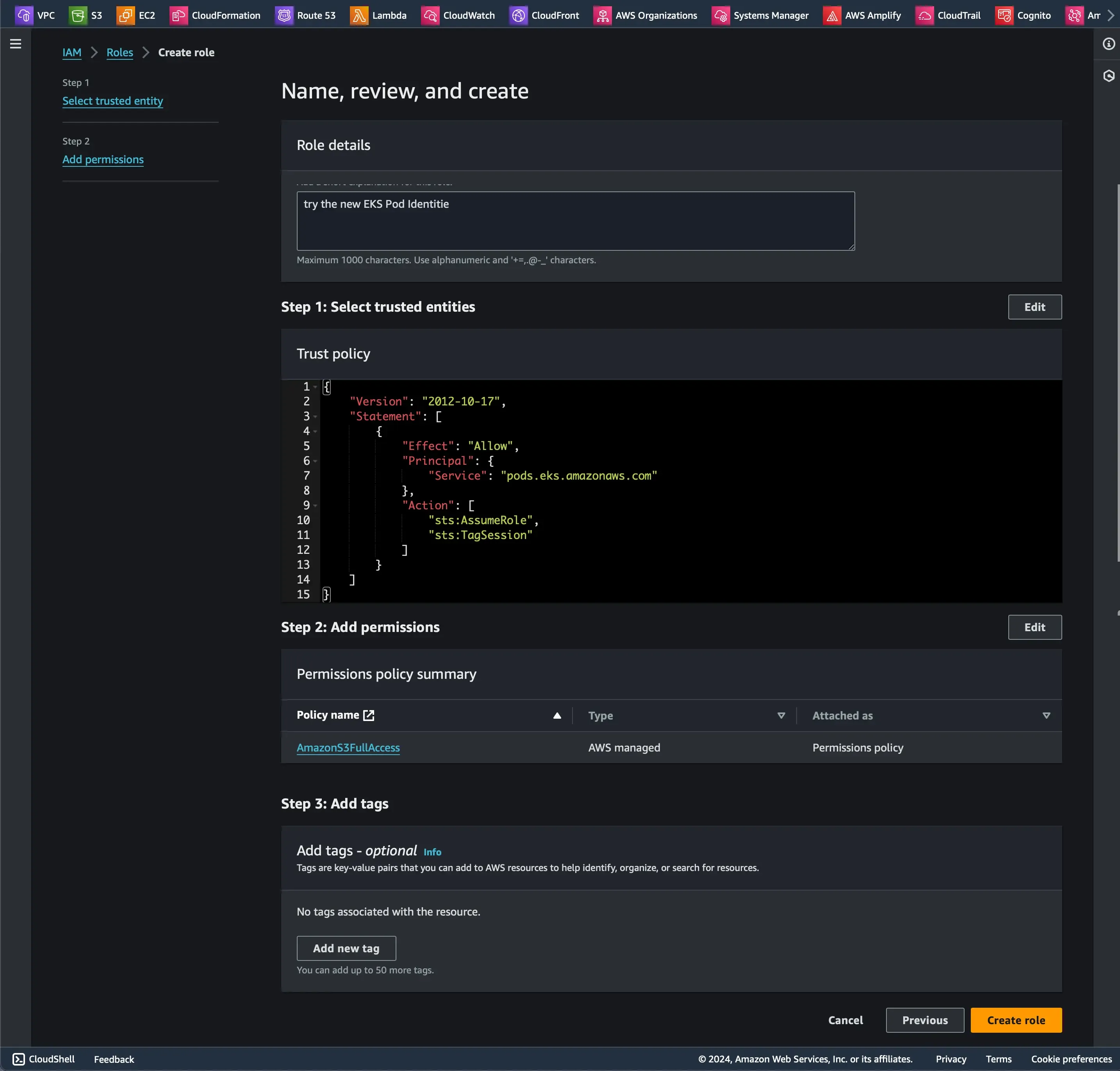

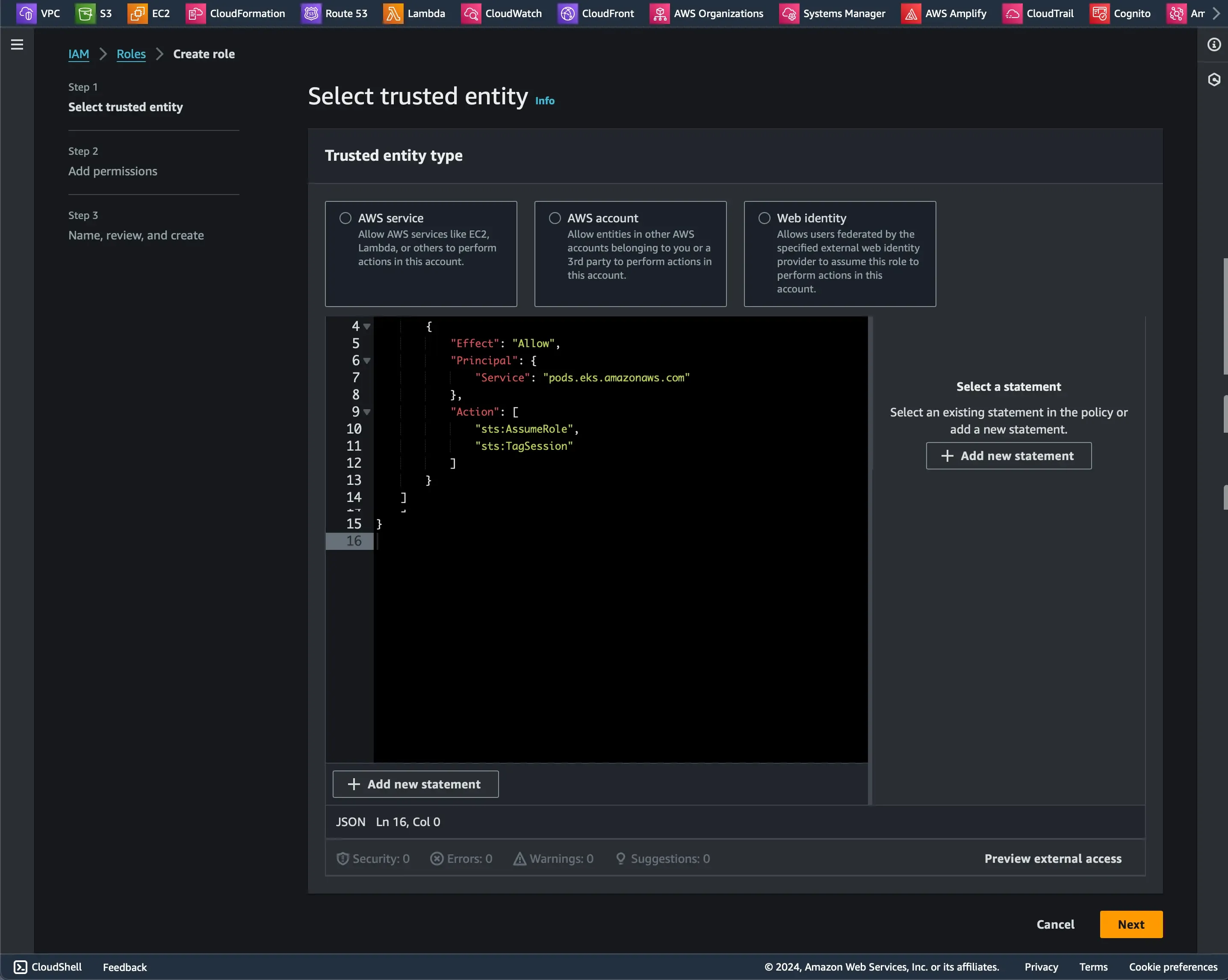

The trust policy

image2 image3 image4

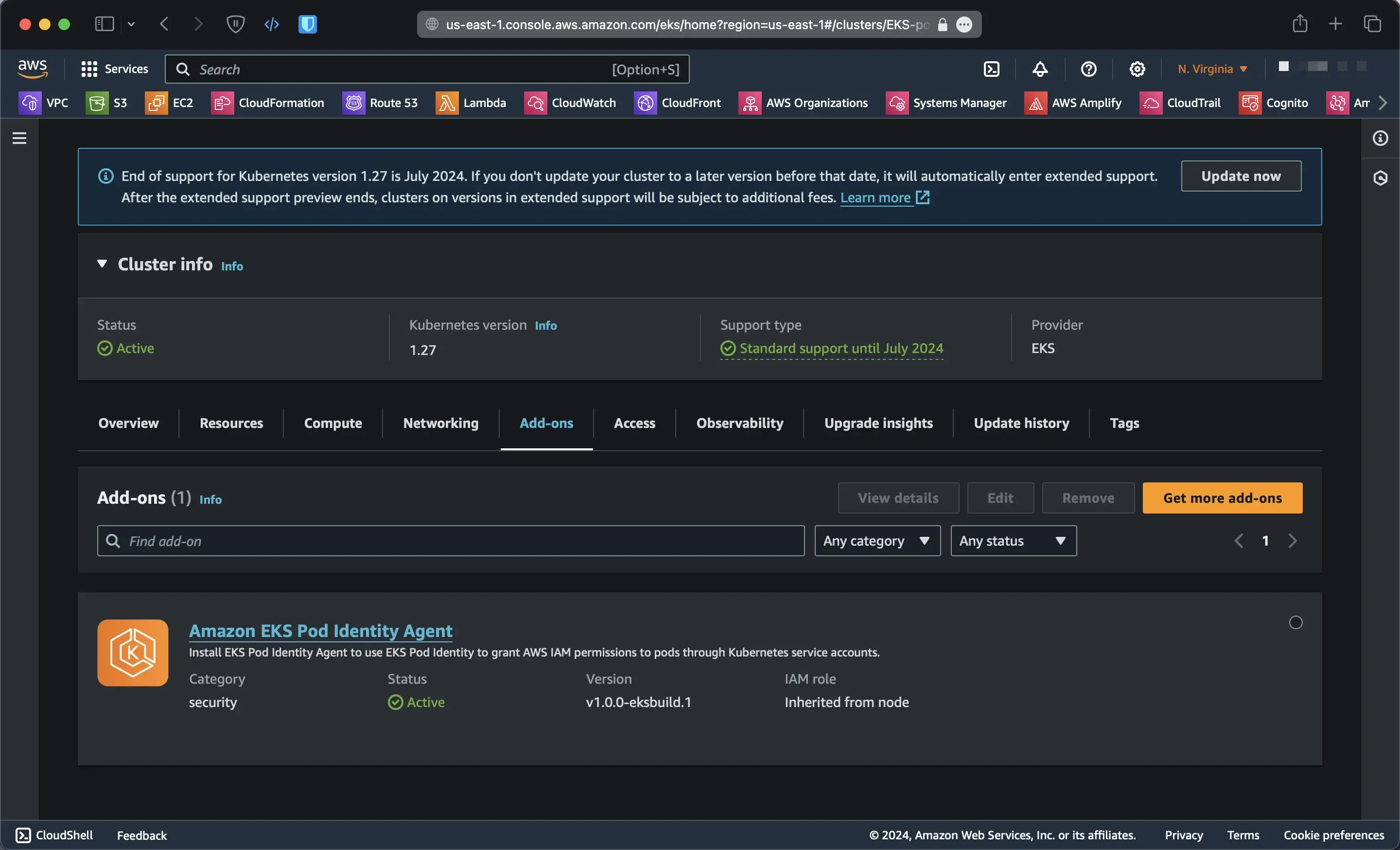

Then you need to install the eks pod identity agent addon, You can do it via the console or eksctl. I will choose eksctl because it’s easier and quicker, Don’t forget to replace the name of the cluster and the region that you chose.

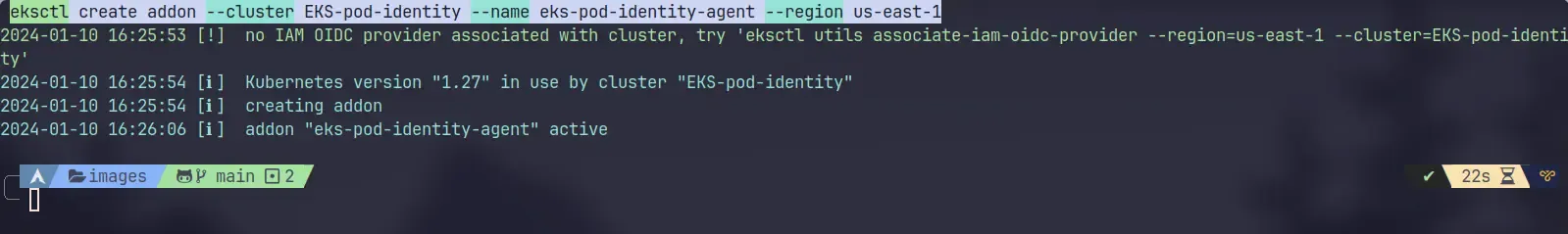

Install the EKS Pod Identity Agent
eksctl create addon --cluster EKS-pod-identity --name eks-pod-identity-agent --region us-east-1

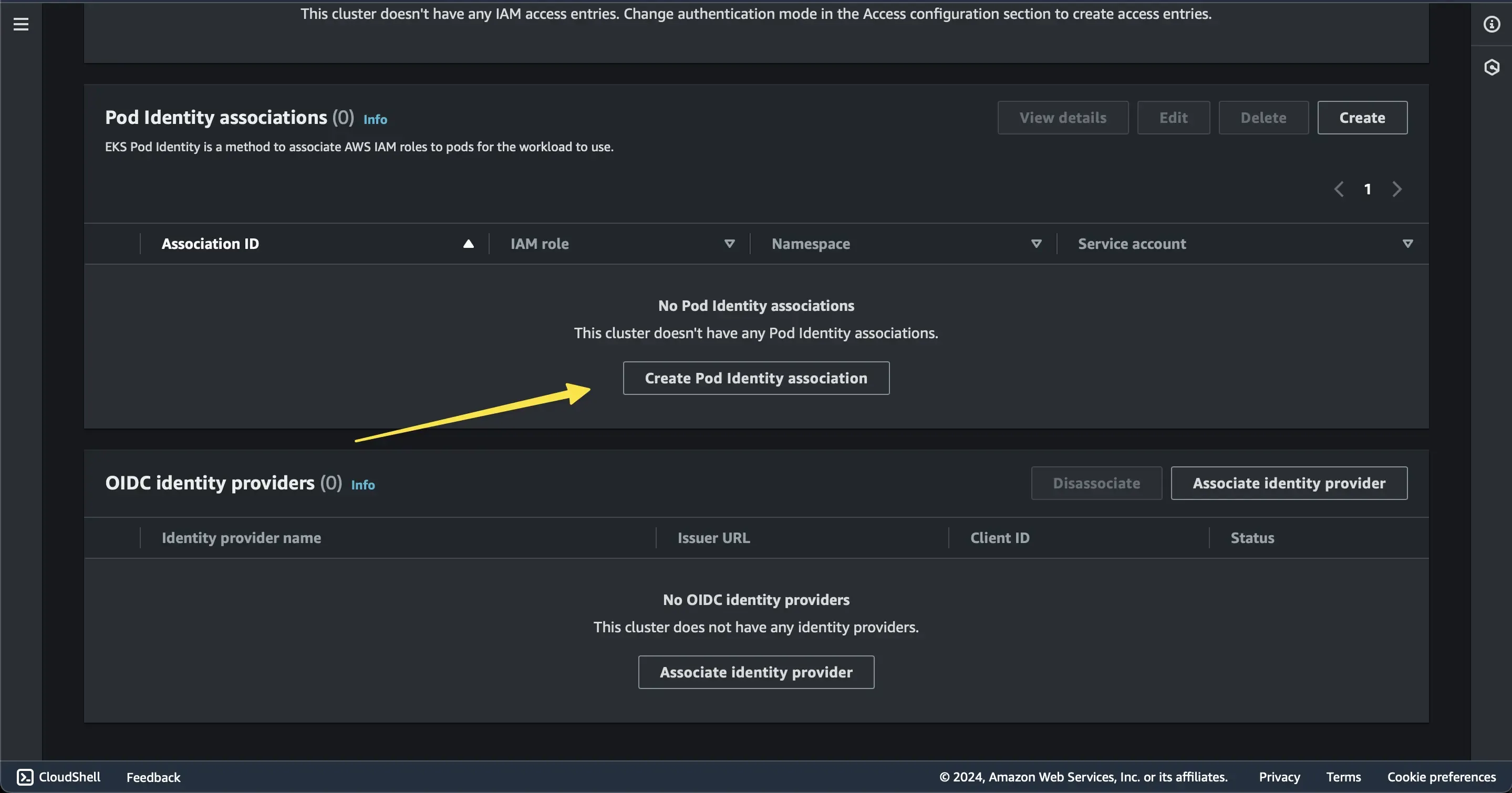

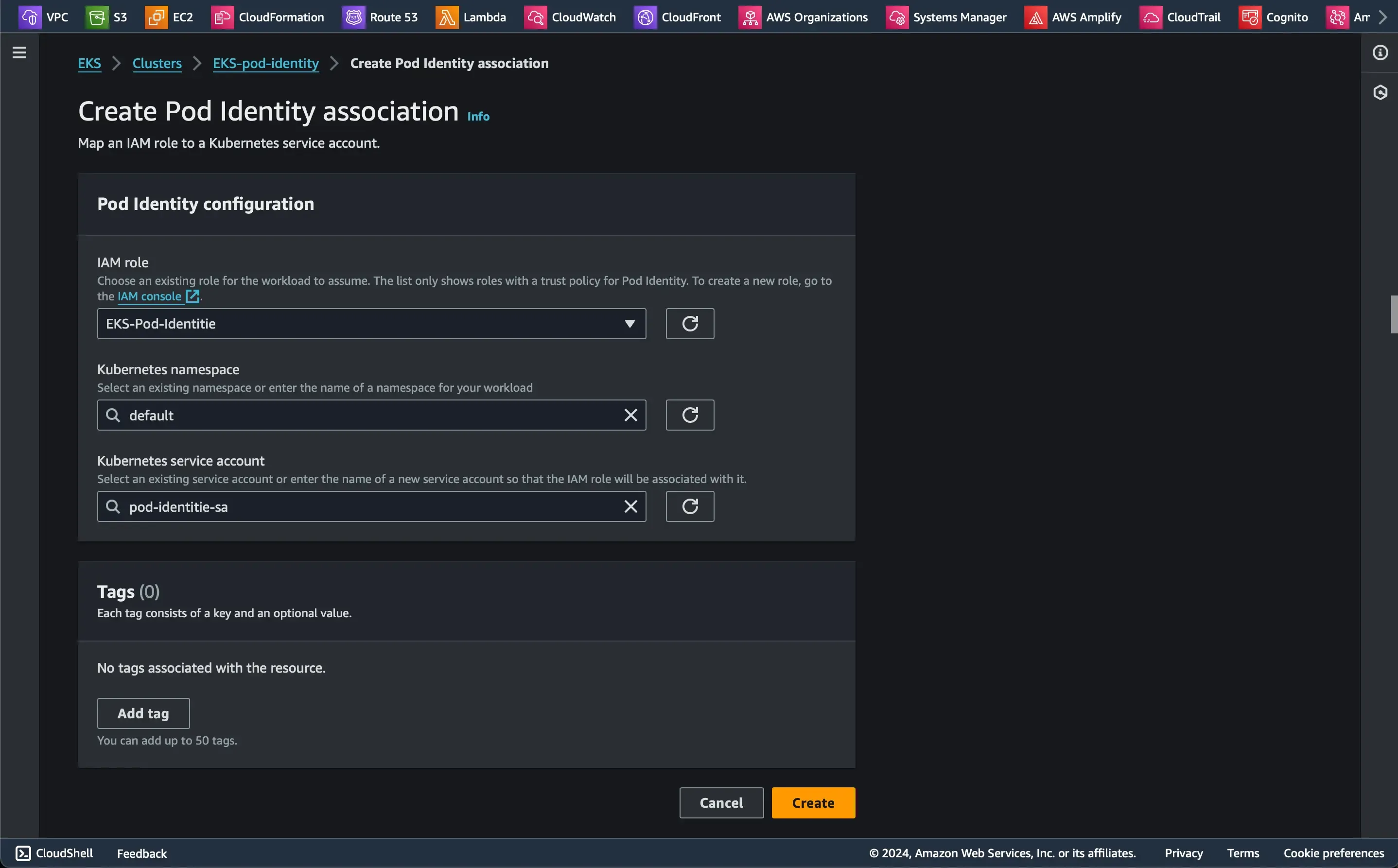

Now, navigate to the ‘Access’ tab in the EKS cluster, click on ‘Pod Identity Associations’ to map our IAM role to Kubernetes pods image9


Step 2: Create an S3 bucket and a service account to test the new Pod Identitie

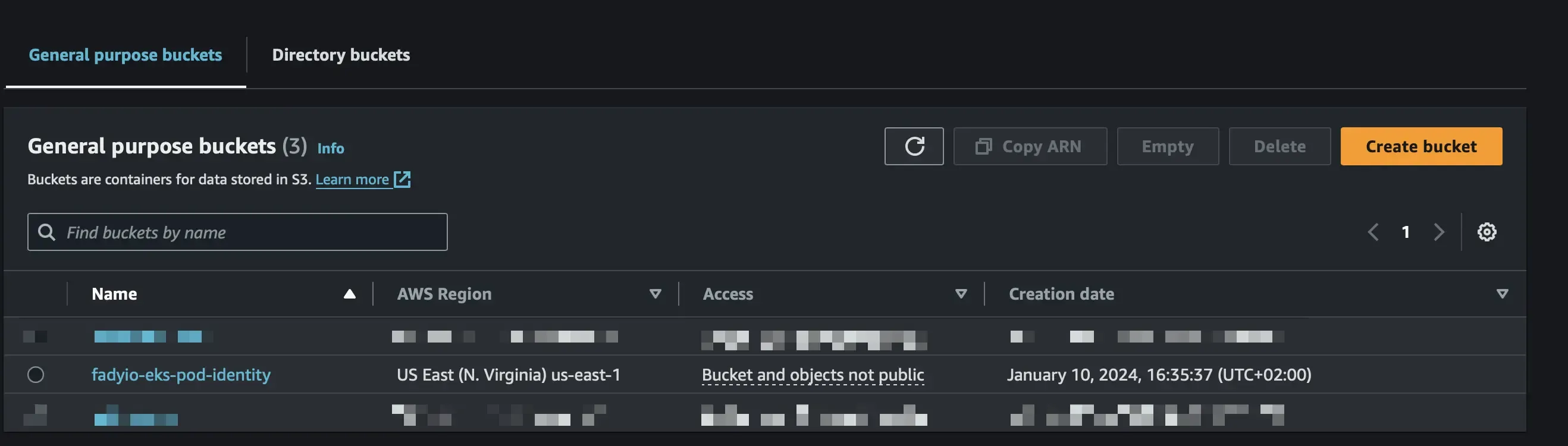

Create an S3 bucket for testing, again, you can do it via the console or AWS CLI

Create an S3 bucket
aws s3api create-bucket --bucket fadyio-eks-pod-identity --region us-east-1

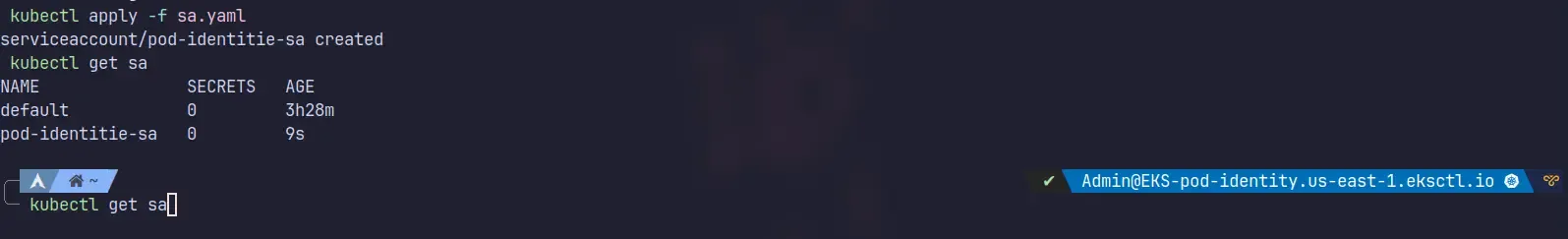

Then, create a service account with the IAM role that we previously created

ServiceAccount.yml
apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::<YOUR-ACCOUNTID>:role/EKS-Pod-Identitie
  name: pod-identitie-sa
  namespace: default
The service account config


Step 3: Create a Pod to test access to the S3 bucket

Pod.yml
apiVersion: v1
kind: Pod
metadata:
  name: ubuntu-identitie
spec:
  serviceAccountName: pod-identitie-sa
  containers:
  - command:
    - sleep
    - "3600"
    image: ubuntu
    name: ubuntu-identitie
The Pod manifest
Apply the Pod manifest
kubectl apply -f FILENAME.yam

we will go into the pod to install the AWS CLI and try to list S3 buckets

Get into the pod
kubectl exec -it ubuntu-identitie -- /bin/bash

from the AWS CLI Installation Guide

Install the AWS CLI
apt update && apt install unzip curl -y
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
unzip awscliv2.zip
./aws/install

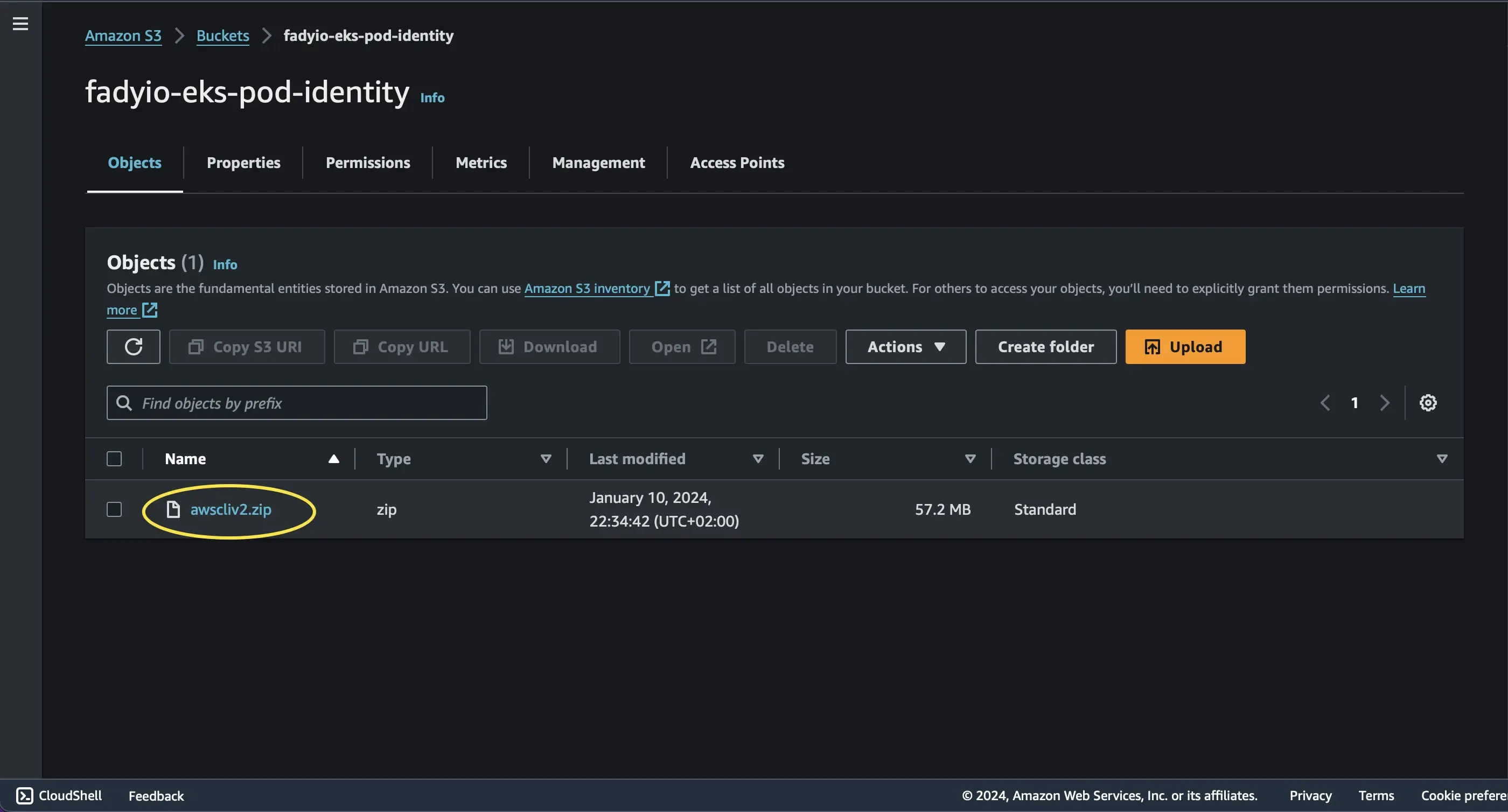

Let’s try to copy the AWS CLI zip file to the S3 bucket

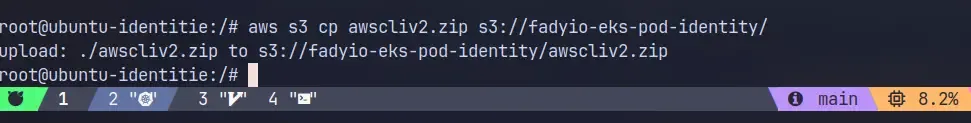

Copy the AWS CLI zip file to the S3 bucket
aws s3 cp awscliv2.zip s3://fadyio-eks-pod-identity/

image11 image12

Summing it up

EKS Pod Identity is a game-changer that simplifies IAM permissions for applications that runs on EKS, A hassle-free configuration experience that makes it easy to define the necessary IAM permissions for your applications in Amazon EKS, Plus, it brings a bunch of security perks like Least Privilege, Credential Isolation, Auditability, Reusability, and better Scalability into the mix.
